Home E

Exhaust air heat pump
comfort system

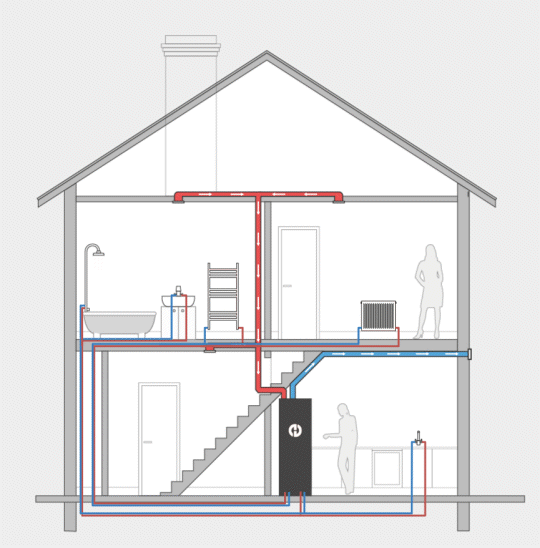

Ventive Home-E is a fully connected and integrated ventilation, heating and hot water system combining demand controlled ventilation, exhaust-air heat pump, thermal store enabled smart heating and free cooling technologies designed for new dwellings.


Home E

Exhaust air heat pump
comfort system

ventive-dev

Ventive Home-E is a fully connected and integrated ventilation, heating and hot water system combining demand controlled ventilation, exhaust-air heat pump, thermal store enabled smart heating and free cooling technologies designed for new dwellings.

Zero Carbon

Ventilation

Heating

Hot Water

Energy Storage

Home-E uses a range of sensors to understand the wellness needs of the space and a dynamic controls package that adapts performance to suit requirements.

Users have an app to set comfort levels which in turn controls system performance. Ventilation rates automatically respond to CO2 levels to ensure optimum air quality is maintained – providing a healthy indoor environment.

.

ventive-dev

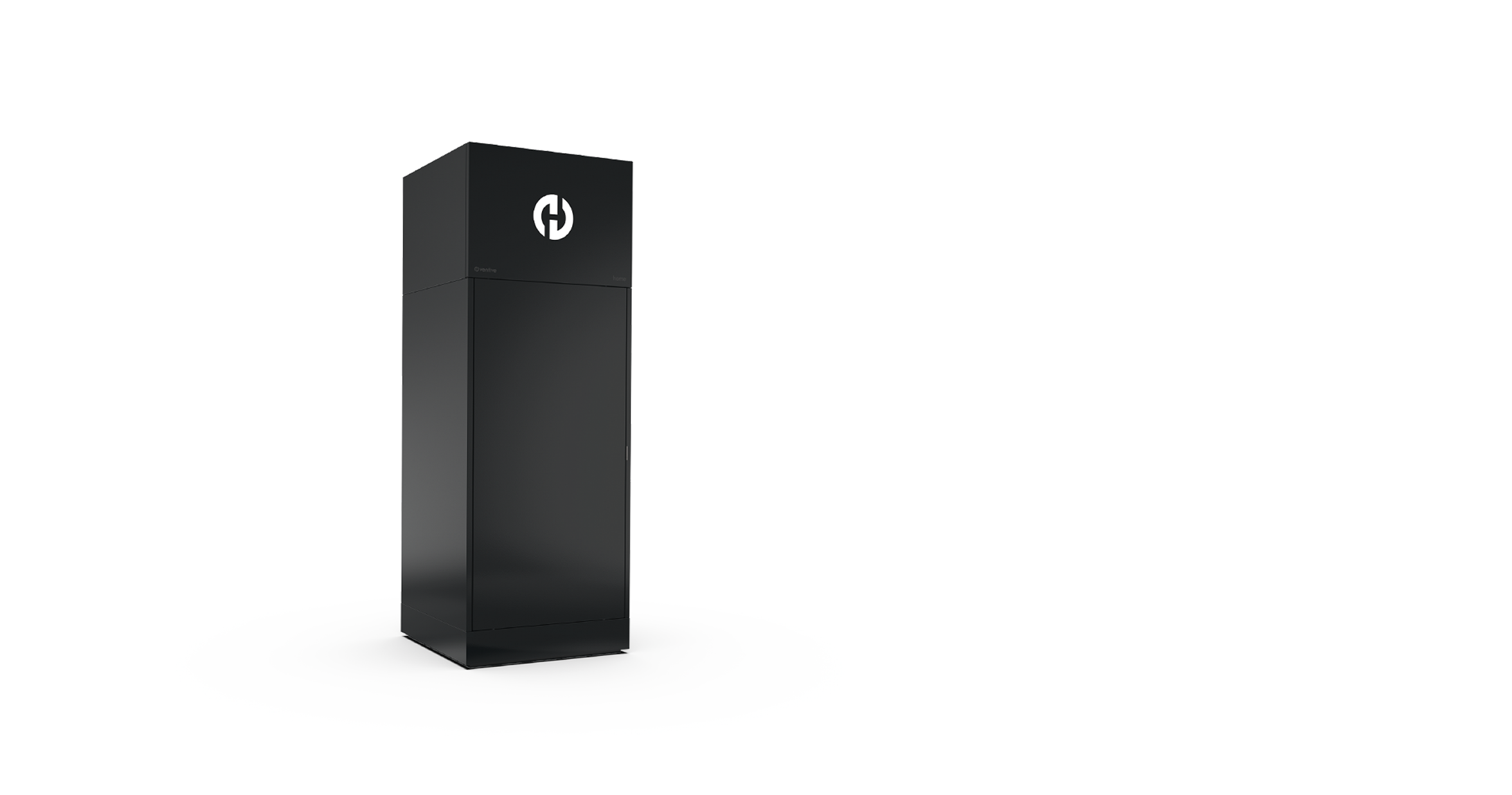

Ventive Home-B dimensions
Heat
  • CH flow temperature: 35-45°C (adjustable)
  • Average COP: 3.2
  • 3kW Compressor output only, up to 6kW with 3h TES boost (Standard Condition)
Hot Water
  • TES store with 50°C PCM transition point
  • HW outlet temperature: 40-45°C (regulated using TMV)
  • Equivalent hot water cylinder size: 280 litres
  • Volume of hot water available at 40o C: 350 litres
  • Instantaneous re-heat capacity: 5.5kW (including 2.8kWe backup)
Ventilation
  • Demand driven extract ventilation rate: 20-70 l/s
  • Variable DC fan, neg. pressure, extract from wet rooms only
Electrical
  • Compressor power consumption: up to 1.6kWe
  • System power consumption: up to 5kWe (maximum compressor, pump, fan, and electric backup load)
  • Fuse rating (internal): 32A
Heat Pump details
  • VFD driven Compressor (variable output)
  • R32 refrigerant (non-toxic, non-flammable, GWP <750)
  • Sound Pressure Level at 1m: 42 dB(A)
Sensors and monitoring package*
  • Full IAQ monitoring with Temperature, RH and CO2 data collected at 1-minute intervals
  • Accessible remotely through an app (user) and a dedicated website (admin)
Dimensions and Weight
  • Width: 595mmm
  • Depth: 595mm
  • Height: 1945mm
  • Weight: 325kg
Connections
  • Mains water supply: 22mm, isolated
  • Hot Water: 22mm, isolated
  • Central Heating: 22mm flow and return, isolated
  • Ventilation Ducts: 125mm insulated
Warranty details
  • 2-year standard warranty (standalone)
  • 5-year extended warranty (with servicing)*
  • Perpetual ‘Peace of Mind’ warranty (with monitoring and maintenance pack)*
* Available on request
